Solar Street Light Basalt series SSL-92 ~ SSL-912
Optical Figure

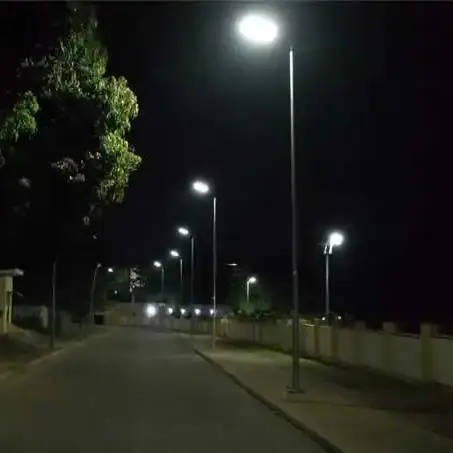

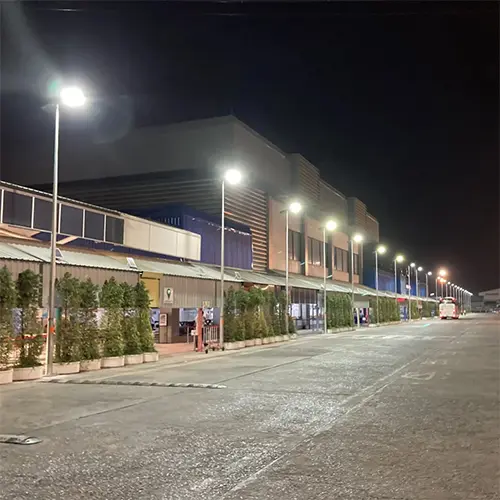

Application Imagery
Jobs opened the envelope and took out MACBOOK AIR, which amazed all audience.
We hope our customers can open the basalt series to surprise everyone. Basalt design comes from IPAD.
Sresky Core Technology
The iteration of new energy products constantly
motivates us to make breakthroughs in product development and technology
Product Details
The iteration of new energy products constantly
motivates us to make breakthroughs in product development and technology
New city / New community / Highway / New suburban road lighting system intended for use with LED light sources.
Installation on poles with pole-tops and lateral arms or whip-type poles with terminals measuring ø 60mm or ø 76 to ø 100mm adapter.
The main material in aluminium; stainless steel bracket.
High visual comfort.
Battery packs have heat insulation methods and temperature detection for charging and discharging temperature protection.
High-yield optics (with polymer optic lenses and uniform light distribution).
No photo-biological risks. This luminaire is in the “Exempt Group” (no risk linked to infrared, blue light and UV radiation) in accordance with EN 62471:2008.
The luminaire can be programmed in every order.
The luminaire is supplied in three steps in Midnight mode and can be lit automatically by a ray sensor.
Overvoltage and Overtemperature protection.
An active control system(ALS technology, patent for invention No. 201710713248.6) changes the current intensity in order to maintain the lighting time of the luminaire even under extremely severe weather.
LED modules, controllers, and battery packs can be replaced independently.
All external screws used are in SUS304 stainless steel.
4 LEDs indicator Auto alarm for different fixture failure by FAS technology（Patent for invention No. 201710713755. X）
The Basalt series comprises four models: solar streetlights, intelligent solar streetlights, AC-solar hybrid streetlights, and intelligent AC-solar hybrid streetlights.
Expand function
The hybrid control module in the lamp is a special function set up to realize the capacity supplement when the battery is low.
When it detects that the battery capacity is lower than 30% during the day, the hybrid module turns on the adapter charging circuit. At this time, the lamp is in the state of two-way charging, one for solar charging and one for the AC charging of the adapter.
During the charging process, when it is detected that the battery capacity is higher than 70%, the hybrid module disconnects the adapter charging circuit. At this time, the remaining 30% capacity of the lamps are independently charged by solar energy.
Throughout the charging process, the AC to DC adapter always acts as a supplementary charging method, and it is added to the charging in rainy days, and most of the charging work is done by solar energy, which achieves the purpose of energy saving.
Close-range direct control of the mobile phone.
Long distance control by the gateway.
Light sensitivity value setting, synchronously, single lamp on and off.
Turn on and off lights/scenes at precise timing.
Get the local weather forecast and adjust the lighting plan for the next two days.
Time period for supporting lamp mode: 3 periods.
Information push: Fault push.
Networking function: yes.
Scene setting: yes.
Project management and permission sharing: yes.
Controllable on PC: yes.
Gateway interworking: yes.
Product Information
Installation Method
Other products
Send Your Queries
We'll contact you as soon as we get the message.
Solar Street Light Basalt series SSL-92 ~ SSL-912
Optical Figure
Application Imagery
Jobs opened the envelope and took out MACBOOK AIR, which amazed all audience. We hope our customers can open the basalt series to surprise everyone. Basalt design comes from IPAD.
Product Details
New city / New community / Highway / New suburban road lighting system intended for use with LED light sources.
Installation on poles with pole-tops and lateral arms or whip-type poles with terminals measuring ø 60mm or ø 76 to ø 100mm adapter.
Main material in aluminium; stainless steel bracket.
High visual comfort.
Battery packs have heat insulation methods and temperature detection for charging and discharging temperature protection.
High-yield optics (with polymer optic lenses and uniform light distribution).
No photo-biological risks. This luminaire is in the “Exempt Group” (no risk linked to infrared, blue light and UV radiation) in accordance with EN 62471:2008.
The Basalt series comprises four models: solar streetlights, intelligent solar streetlights, AC-solar hybrid streetlights, and intelligent AC-solar hybrid streetlights.

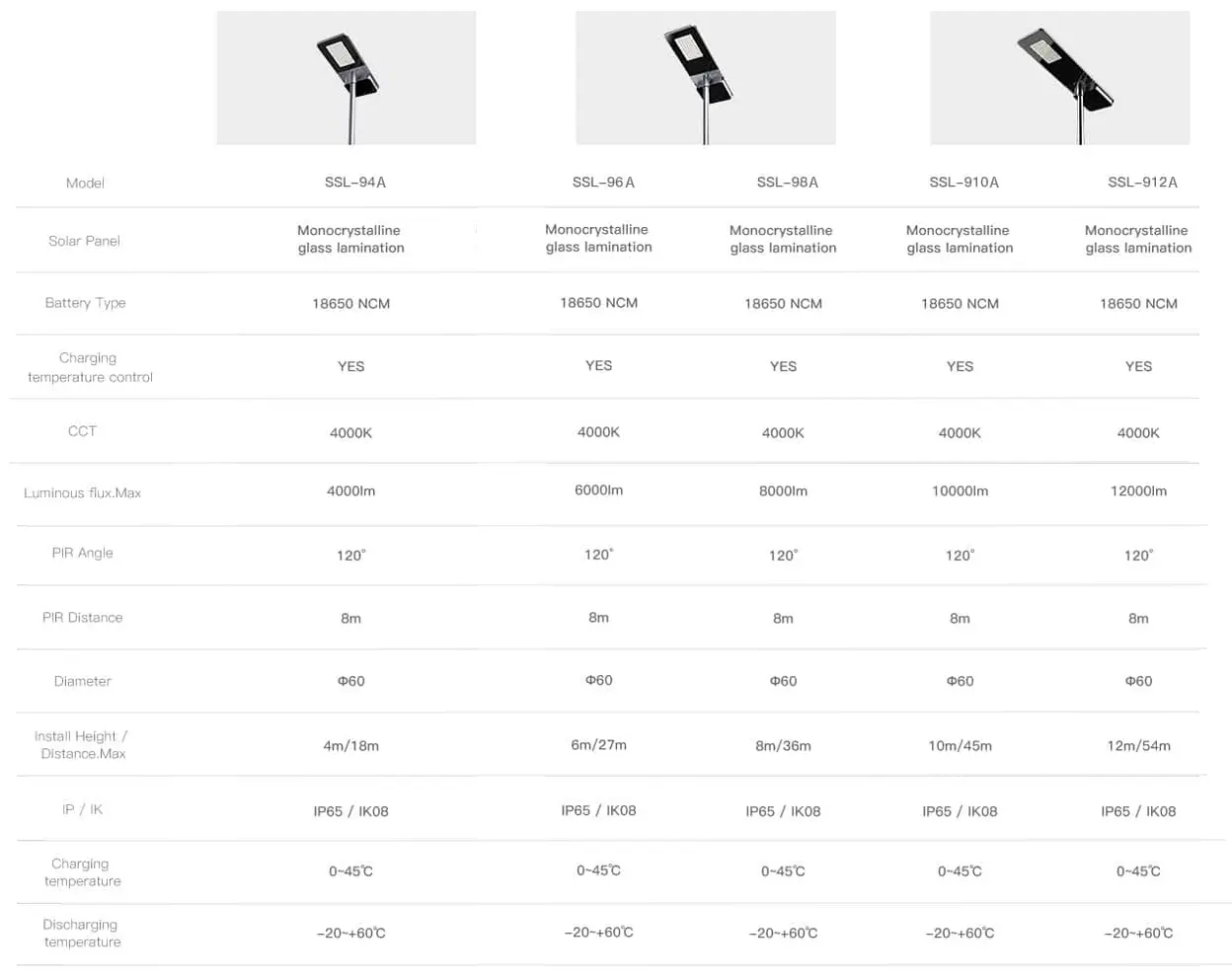

Product Information
| Model | SSL-92 | SSL-94 | SSL-96 | SSL-98 | SSL-910 | SSL-912 |
|---|---|---|---|---|---|---|
| Solar Panel | Monocrystalline glass lamination | Monocrystalline glass lamination | Monocrystalline glass lamination | Monocrystalline glass lamination | Monocrystalline glass lamination | Monocrystalline glass lamination |
| Battery Type | 18650 NCM | 18650 NCM | 18650 NCM | 18650 NCM | 18650 NCM | 18650 NCM |
| Charging temperature control | YES | YES | YES | YES | YES | YES |
| CCT | 4000K | 4000K | 4000K | 4000K | 4000K | 4000K |
| Luminous flux.Max | 2000lm | 4000lm | 6000lm | 8000lm | 10000lm | 12000lm |
| PIR Angle | 120° | 120° | 120° | 120° | 120° | 120° |
| PIR Distance | 8m | 8m | 8m | 8m | 8m | 8m |
| Diameter | Φ60 | Φ60 | Φ60 | Φ60 | Φ60 | Φ60 |
| Install height / Distance.Max | 3m/15m | 4m/15m | 6m/15m | 8m/15m | 10m/15m | 12m/15m |
| IP / IK | IP65 / IK08 | IP65 / IK08 | IP65 / IK08 | IP65 / IK08 | IP65 / IK08 | IP65 / IK08 |
| Charging temperature | 0~45 ℃ | 0~45 ℃ | 0~45 ℃ | 0~45 ℃ | 0~45 ℃ | 0~45 ℃ |
| Discharging temperature | -20~+60 ℃ | -20~+60 ℃ | -20~+60 ℃ | -20~+60 ℃ | -20~+60 ℃ | -20~+60 ℃ |
Installation Method

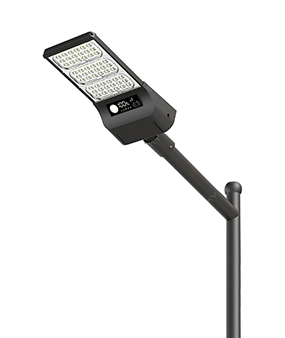

Other products
