Solar Street Light Atlas SSL-315/316/318/320
Featured Highlights

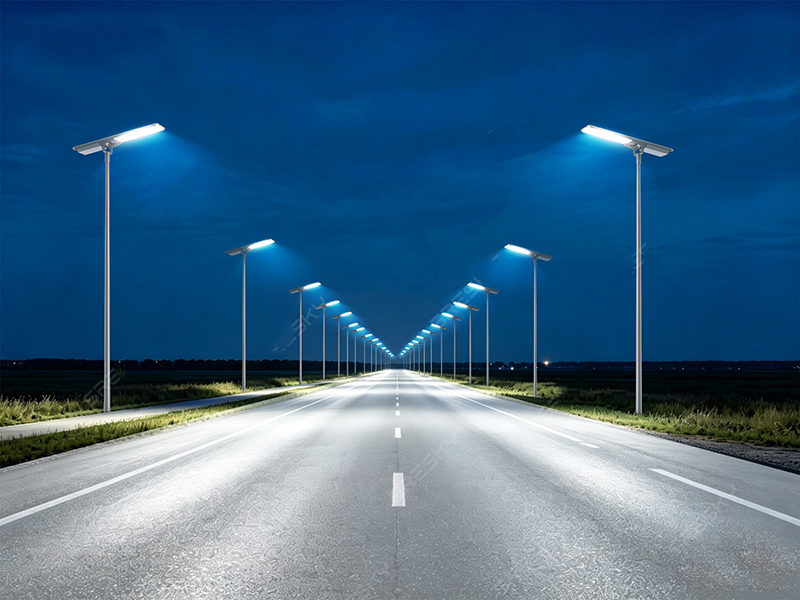

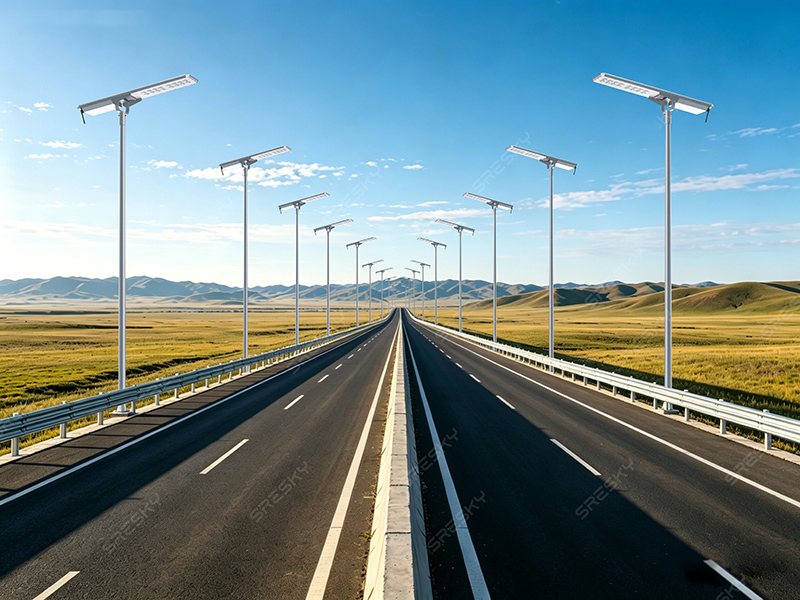

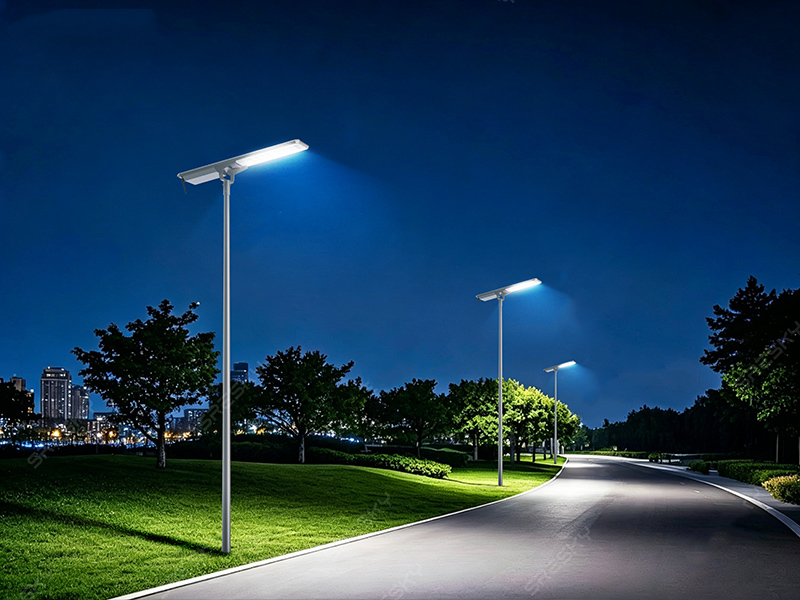

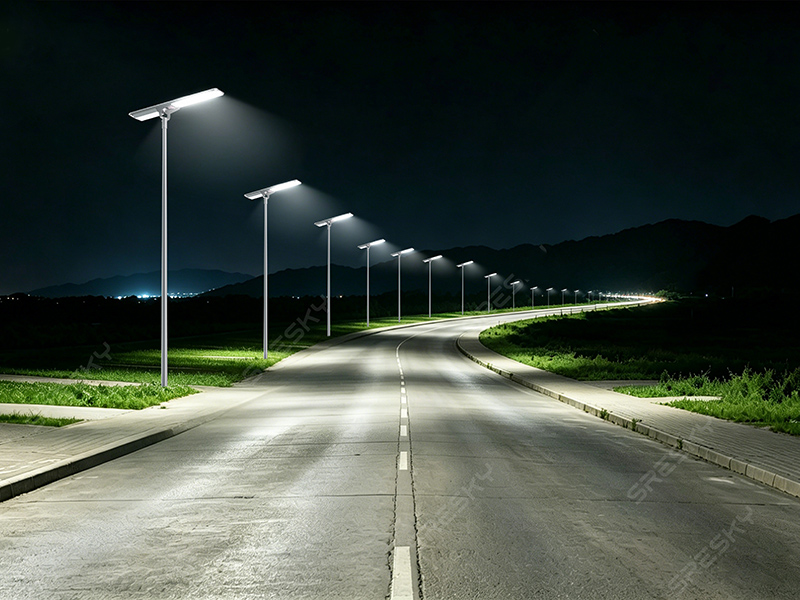

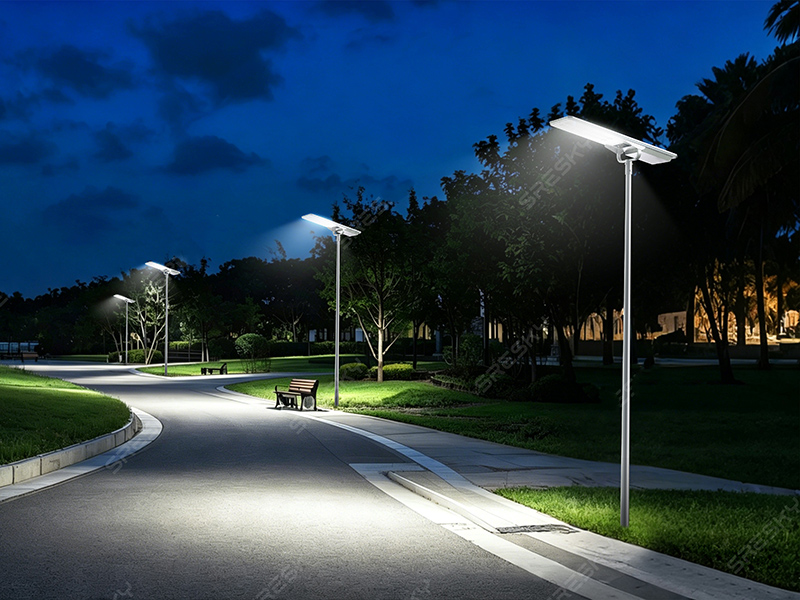

Application Imagery
Adjustable Solar Panels
It can solve the the problem of sunlight Angle when lights are installed on both sides of the road.
Sresky Core Technology
The iteration of new energy products constantly
motivates us to make breakthroughs in product development and technology

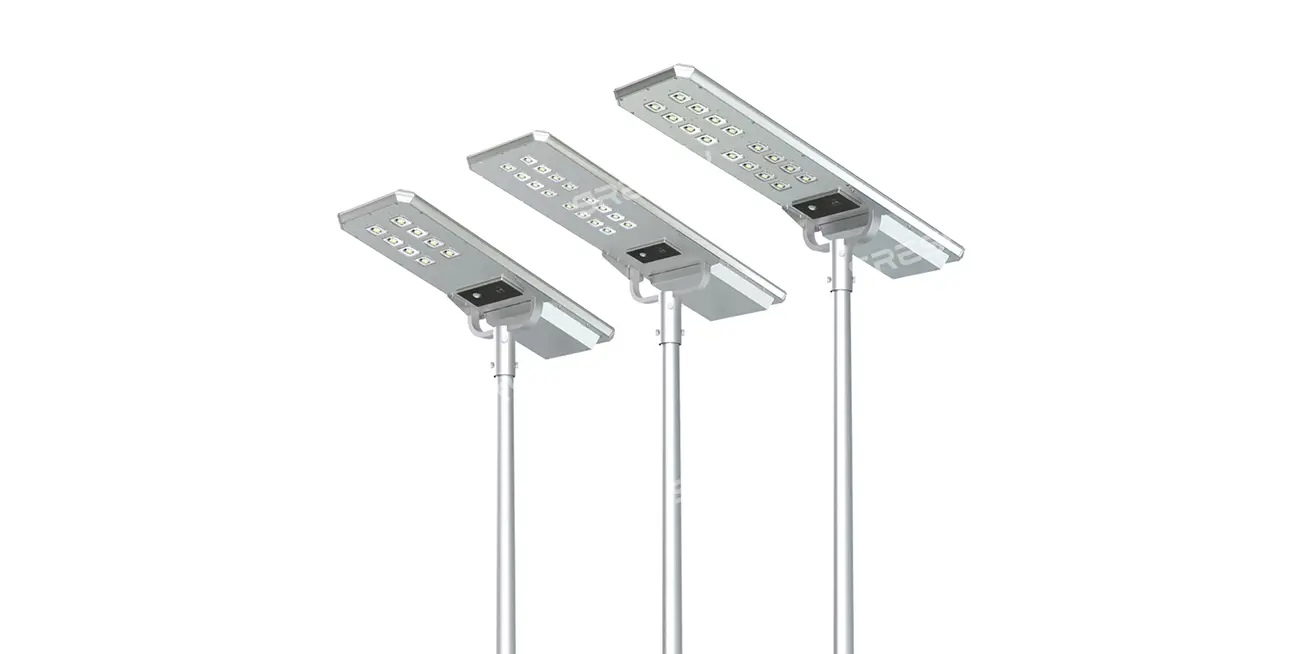

Product Details
The iteration of new energy products constantly
motivates us to make breakthroughs in product development and technology
230lm/W High Efficiency LEDs
230lm/W, 8000–15000lm options, reducing fixture count and lowering project costs.
Smart Energy Savings
Multi-mode and remote control optimize energy consumption, boosting ROI.
All-Weather Stability
ALS2.4 constant brightness + TCS thermal control ensures reliability in rain, fog, and high temperatures, minimizing downtime and complaints.
Wide Application Range:
Covers an area of 400–800 m² with an installation height of 8–12 m, meeting diverse needs for roads, campuses, and engineering projects.
Long-Life Energy Storage System:
A+ Grade LiFePO4 batteries combined with an intelligent BMS provide over 4,000 charge cycles for extended service life.
Industrial-grade protective design:
Constructed with an aluminum housing and stainless-steel brackets. Rated IP66 and IK08 for long-term durability in harsh outdoor environments.
Smart Control Flexibility:
Supports PIR motion sensing, multiple lighting modes, and optional smart lighting management solutions.
Quick Maintenance
Modular design and controller enable faster installation and lower labor costs.
Product Information
| Model | SSL-315 | SSL-316 | SSL-318 | SSL-320 |
|---|---|---|---|---|
| Light Brightness | 8000LM | 10000LM | 12000LM | 15000LM |
| LED Power | 44W | 50W | 60W | 78W |
| Solar Panel | Mono-Si, 23.4V/71W | Mono-Si, 30.6V/94W | Mono-Si, 30.6V/94W | Mono-Si, 30V/138W |
| Battery Type | LiFePO4, 19.2V 20AH, 384WH | LiFePO4, 22.4V 30AH, 672WH | LiFePO4, 25.6V 30AH, 768WH | LiFePO4, 25.6V 40AH, 1024WH |
| LED Quantity | 3030, 80pcs | 3030, 160pcs | 3030, 160pcs | 3030, 160pcs |
| CCT | 5700K, Ra>70 | 5700K, Ra>70 | 5700K, Ra>70 | 5700K, Ra>70 |
| PIR | 120°, 8m.Max | 120°, 8m.Max | 120°, 8m.Max | 120°, 8m.Max |
| IP / IK Class | IP66 / IK08 | IP66 / IK08 | IP66 / IK08 | IP66 / IK08 |
| Max Lighting Area | 408㎡ | 550㎡ | 610㎡ | 816㎡ |
| Install Height | 8m | 10m | 12m | 12m |
| Install Distance | 29m | 27m | 25m | 31m |
| Charging / Discharging Temp | 0℃~60℃ / -20℃~+60℃ | 0℃~60℃ / -20℃~+60℃ | 0℃~60℃ / -20℃~+60℃ | 0℃~60℃ / -20℃~+60℃ |
Product Case
Sresky has successfully deployed more than 80,000,000 solar lights worldwide, We have very rich design experience to help you get more projects. We have enough certifications to help you gain customer approval.
ATLAS Solar Street Lights for a Zero-Carbon Smart Community in Israel
An Israeli residential community installed 200 solar street lights to reduce energy use and build a zero-carbon smart neighborhood.
Atlas Solar Street Lights for Oran Stadium Lighting Project in Algeria
5,000 Sresky ATLAS solar street lights illuminated Oran Stadium, creating a landmark sustainable lighting project in Africa.
ATLAS Solar Street Light Project for Industrial Park in Saudi Arabia
Hundreds of Sresky solar street lights were installed in a Saudi desert industrial park to support Vision 2030 with reliable, sustainable lighting.
Product Video
Atlas Solar Street Light Function Introduction
Coming Soon
Installation Method
Other Products
Product FAQ
Get clear answers and expert advice.
If you're considering solar street lighting for your project and have questions, you're not alone. We've gathered answers to the most common inquiries to help you fully understand the benefits, reliability, and value of our advanced solar lighting solutions. Explore our insights to learn how our products can meet your specific needs.
Product Reviews
Don’t just take our word for it. Find out what satisfied customers have to say about our high-quality, competitively priced solar lights. Read their reviews to discover why our products are the best choice for your sustainable solar lighting needs.
Solar Street Light Atlas SSL-315/316/318/320
Application Imagery
It can solve the the problem of sunlight Angle when lights are installed on both sides of the road.
Product Details
230lm/W High Efficiency LEDs
230lm/W, 8000–15000lm options, reducing fixture count and lowering project costs.
Smart Energy Savings
Multi-mode and remote control optimize energy consumption, boosting ROI.
All-Weather Stability
ALS2.4 constant brightness + TCS thermal control ensures reliability in rain, fog, and high temperatures, minimizing downtime and complaints.
Wide Application Range:
Covers an area of 400–800 m² with an installation height of 8–12 m, meeting diverse needs for roads, campuses, and engineering projects.
Long-Life Energy Storage System:
A+ Grade LiFePO4 batteries combined with an intelligent BMS provide over 4,000 charge cycles for extended service life.
Industrial-grade protective design:
Constructed with an aluminum housing and stainless-steel brackets. Rated IP66 and IK08 for long-term durability in harsh outdoor environments.
Smart Control Flexibility:
Supports PIR motion sensing, multiple lighting modes, and optional smart lighting management solutions.
Quick Maintenance
Modular design and controller enable faster installation and lower labor costs.
Product Information
| Model | SSL-315 | SSL-316 | SSL-318 | SSL-320 |
|---|---|---|---|---|
| Light Brightness | 8000LM | 10000LM | 12000LM | 15000LM |
| LED Power | 44W | 50W | 60W | 78W |
| Solar Panel | Mono-Si, 23.4V/71W | Mono-Si, 30.6V/94W | Mono-Si, 30.6V/94W | Mono-Si, 30V/138W |
| Battery Type | LiFePO4, 19.2V 20AH, 384WH | LiFePO4, 22.4V 30AH, 672WH | LiFePO4, 25.6V 30AH, 768WH | LiFePO4, 25.6V 40AH, 1024WH |
| LED Quantity | 3030, 80pcs | 3030, 160pcs | 3030, 160pcs | 3030, 160pcs |
| CCT | 5700K, Ra>70 | 5700K, Ra>70 | 5700K, Ra>70 | 5700K, Ra>70 |
| PIR | 120°, 8m.Max | 120°, 8m.Max | 120°, 8m.Max | 120°, 8m.Max |
| IP / IK Class | IP66 / IK08 | IP66 / IK08 | IP66 / IK08 | IP66 / IK08 |
| Max Lighting Area | 408㎡ | 550㎡ | 610㎡ | 816㎡ |
| Install Height | 8m | 10m | 12m | 12m |
| Install Distance | 29m | 27m | 25m | 31m |
| Charging / Discharging Temp | 0℃~60℃ / -20℃~+60℃ | 0℃~60℃ / -20℃~+60℃ | 0℃~60℃ / -20℃~+60℃ | 0℃~60℃ / -20℃~+60℃ |
