Solar street light Atlas SSL 32~SSL 310 - Sresky

Optical Figure

ATLAS-SSL-32-310-1

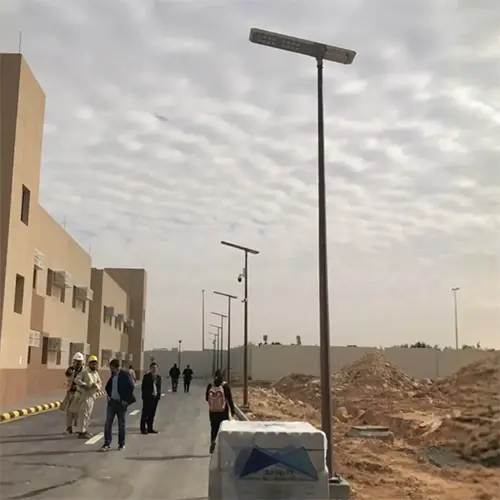

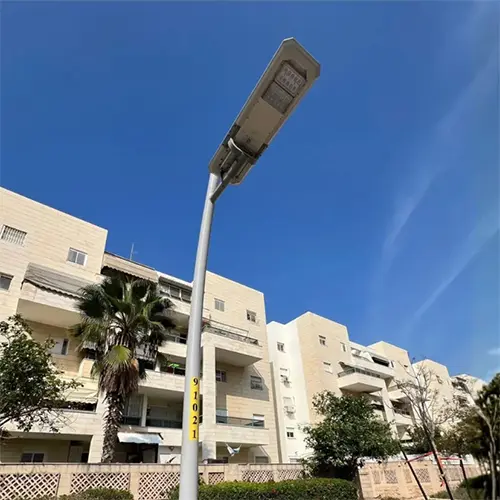

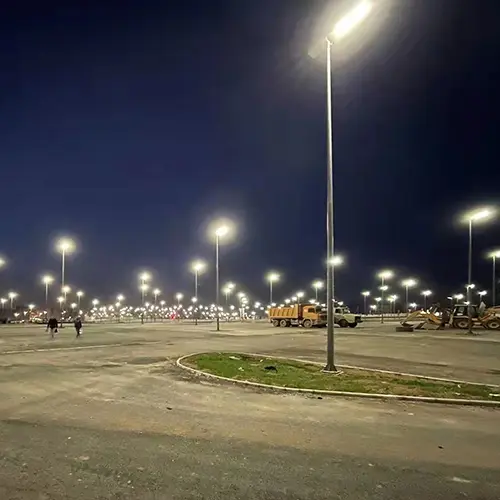

Application Imagery

The design inspiration of our Atlas series comes from the industrial revolution.

We hope they have both the sense of industry and the convenience that industry brings to people.

Sresky Core Technology

The iteration of new energy products constantly

motivates us to make breakthroughs in product development and technology

Sresky Core Technology

Product Details

The iteration of new energy products constantly

motivates us to make breakthroughs in product development and technology

21 图标 New city / New community / Highway / New suburban road lighting system intended for use with LED light sources.

21 图标 Installation on poles with pole-tops and lateral arms or whip-type poles with terminals measuring ø 60mm or ø 76 to ø 100mm adapter.

21 图标 Main material in aluminium; stainless steel bracket.

21 图标 High visual comfort.

21 图标 Battery pack have heat insulation method and temperature detection for charging and discharging temperature protection.

21 图标 High yield optics (with polymer optic lenses and uniform light distribution).

21 图标 No photo-biological risks.This luminaire is in the “Exempt Group” (no risk linked to infrared, blue light and UV radiation) in accordance with EN 62471:2008.

21 icon The luminaire can be programmed in every order.

21 icon The luminaire is supplied in three steps Midnight mode and can be lit automatically by a ray sensor.

21 icon Overvoltage and Overtemperature protection.

21 icon An active control system(ALS technology, patent for invention No. 201710713248.6) changes the current intensity in order to maintain the lighting time of the luminaire even under extreme severe weather.

21 icon LED modules , controller, battery pack can be replaced independently.

21 icon All external screws used are in SUS304 stainless steel.

21 图标 It can be extended as a solar street light integrated with mains power.

21 图标 It can be expanded into a smart street light with a Bluetooth chip, which can be managed through mobile phones and computers.

Product Information

ATLAS 整体 参数15

Installation Method

ATLAS 32 310 11 2
ATLAS 32 310 12
ATLAS 32 310 13
ATLAS 32 310 14

Other products

Send Your Queries

We'll contact you as soon as we get the message.

    Ways of cooperation

    OEM/ODMProjectDistributorOthers

    Solar street light SSL-32~SSL-310

    Optical Figure

    ATLAS-SSL-32-310-1

    Application Imagery

    The design inspiration of our Atlas series comes from the industrial revolution. We hope they have both the sense of industry and the convenience that industry brings to people.

    Product Details

    21 图标New city / New community / Highway / New suburban road lighting system intended for use with LED light sources.

    21 图标Installation on poles with pole-tops and lateral arms or whip-type poles with terminals measuring ø 60mm or ø 76 to ø 100mm adapter.

    21 图标Main material in aluminium; stainless steel bracket.

    21 图标High visual comfort.

    21 图标 Battery pack have heat insulation method and temperature detection for charging and discharging temperature protection.

    21 图标High yield optics (with polymer optic lenses and uniform light distribution).

    21 图标 No photo-biological risks.This luminaire is in the “Exempt Group” (no risk linked to infrared, blue light and UV radiation) in accordance with EN 62471:2008.

    21 icon The luminaire can be programmed in every order.

    21 icon The luminaire is supplied in three steps Midnight mode and can be lit automatically by a ray sensor.

    21 icon Overvoltage and Overtemperature protection.

    21 icon An active control system(ALS technology, patent for invention No. 201710713248.6) changes the current intensity in order to maintain the lighting time of the luminaire even under extreme severe weather.

    21 icon LED modules , controller, battery pack can be replaced independently.

    21 icon All external screws used are in SUS304 stainless steel.

    21 图标 It can be extended as a solar street light integrated with mains power.

    21 图标 It can be expanded into a smart street light with a Bluetooth chip, which can be managed through mobile phones and computers.

    Product Information

    Model SSL-32M SSL-34M SSL-36M SSL-38M SSL-310M
    Solar PanelMonocrystalline glass laminationMonocrystalline glass laminationMonocrystalline glass laminationMonocrystalline glass laminationMonocrystalline glass lamination
    Battery Type18650 NCM18650 NCM18650 NCM18650 NCM18650 NCM
    Charging temperature controlYESYESYESYESYES
    CCT6000K6000K6000K6000K6000K
    Luminous flux.Max2000lm2000lm2000lm2000lm2000lm
    PIR Angle120°120°120°120°120°
    PIR Distance8m8m8m8m8m
    DiameterΦ60Φ60Φ60Φ60Φ60
    Install height / Distance Max3m/15m4m/15m6m/15m8m/15m10m/15m
    IP / IKIP65 / IK10IP65 / IK10IP65 / IK10IP65 / IK10IP65 / IK10
    Charging temperature0~45 ℃0~45 ℃0~45 ℃0~45 ℃0~45 ℃
    Discharging temperature-20~+60 ℃-20~+60 ℃-20~+60 ℃-20~+60 ℃-20~+60 ℃

    Installation Method

    ATLAS 32 310 11 2
    ATLAS 32 310 12
    ATLAS 32 310 13
    ATLAS 32 310 14
