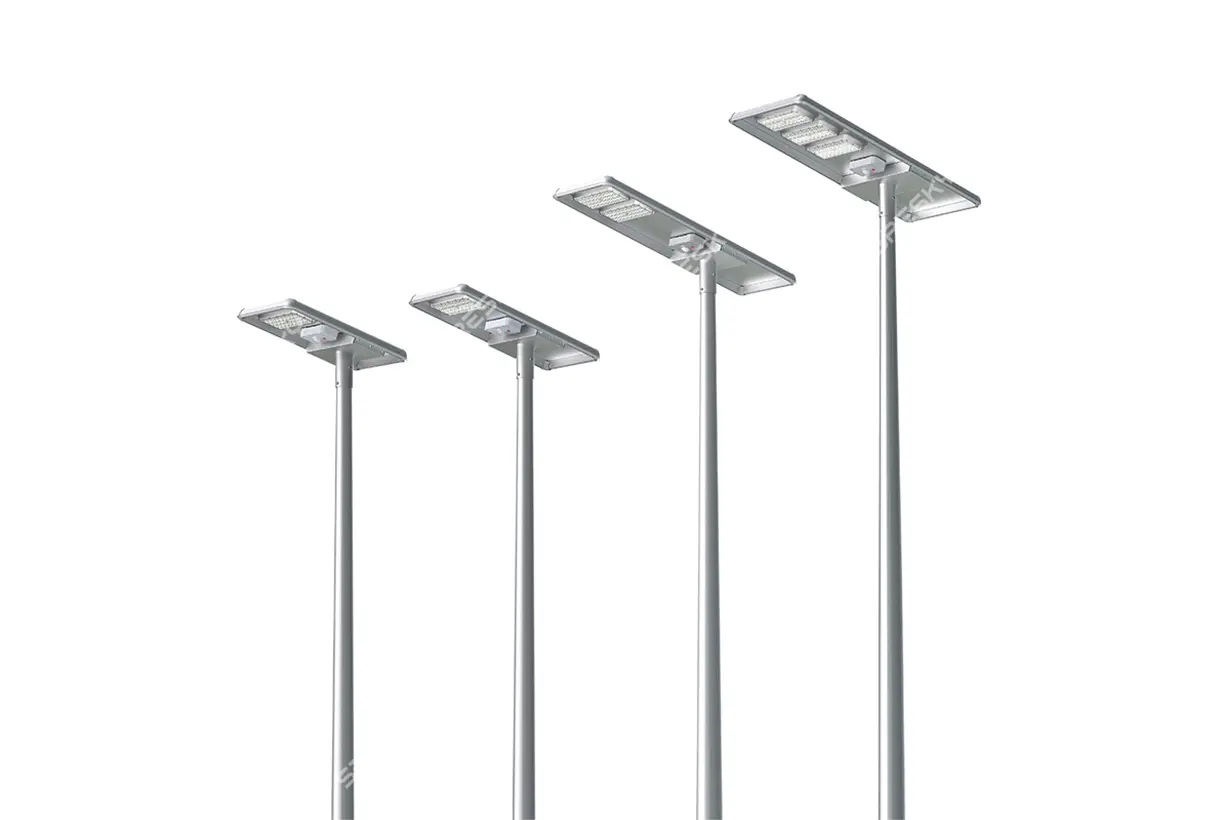

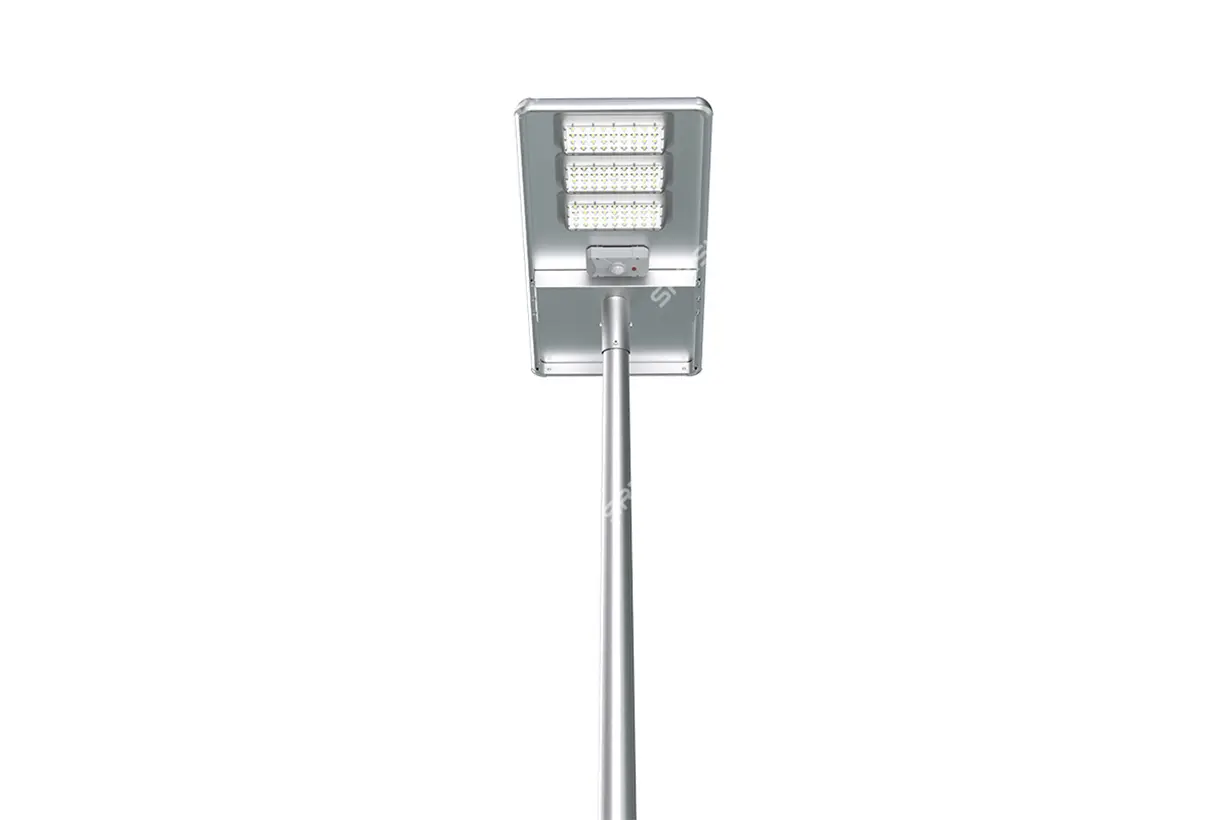

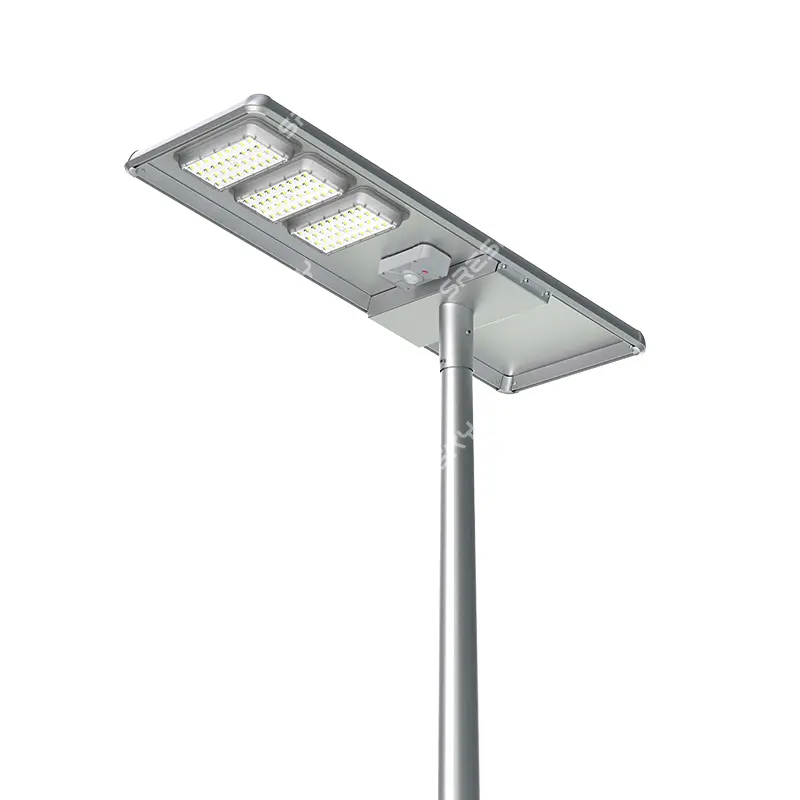

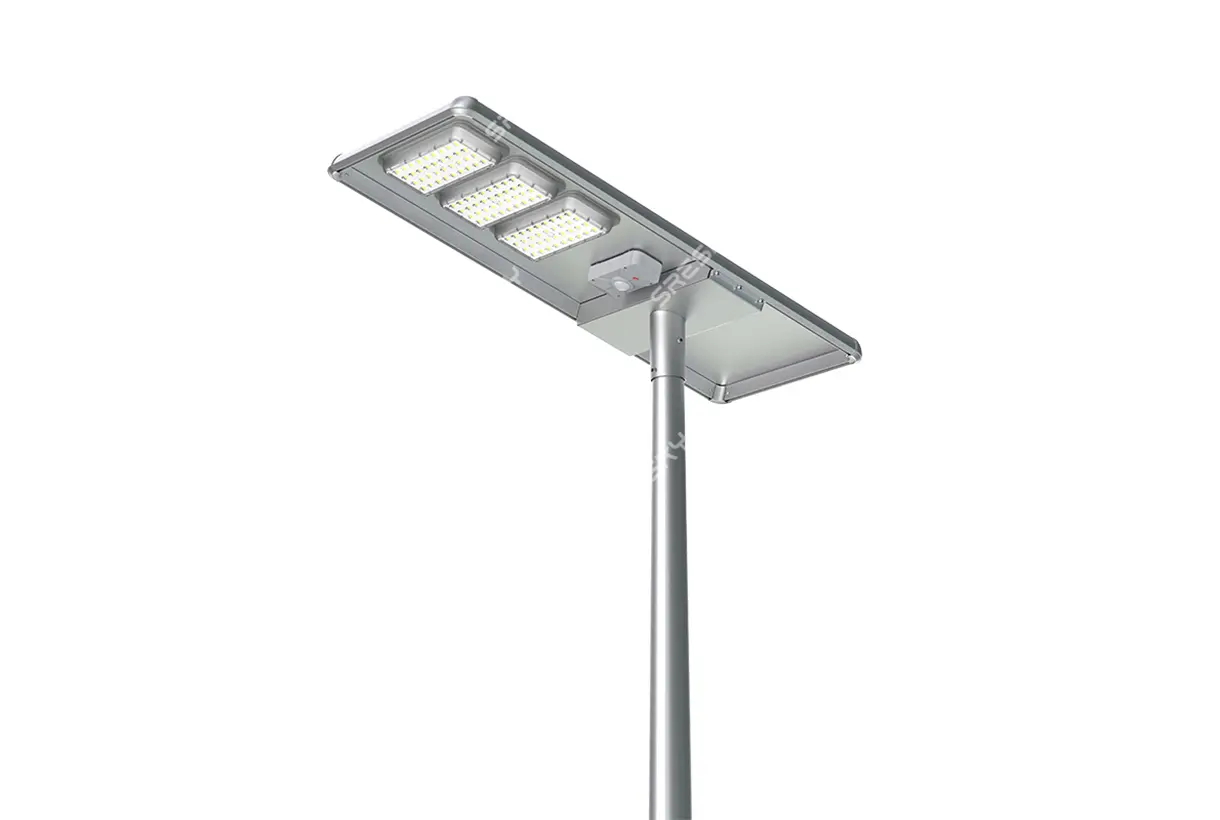

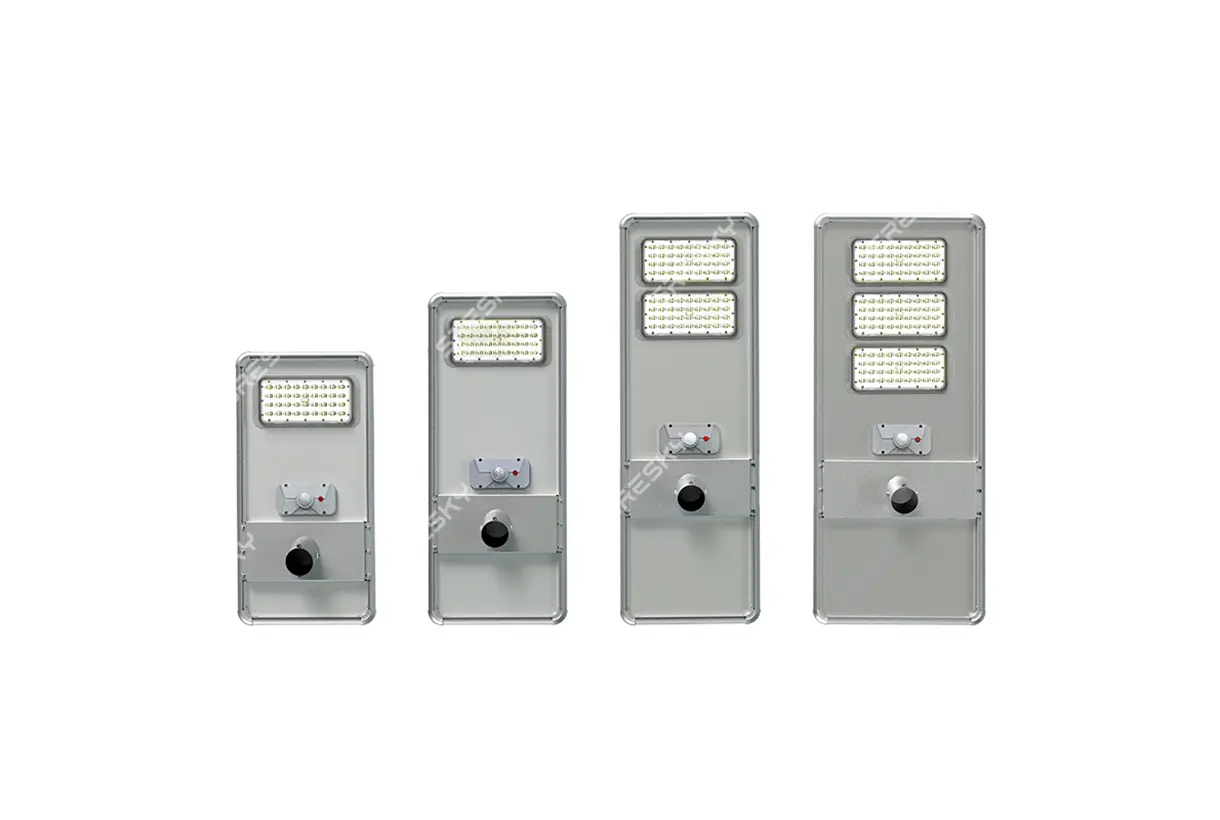

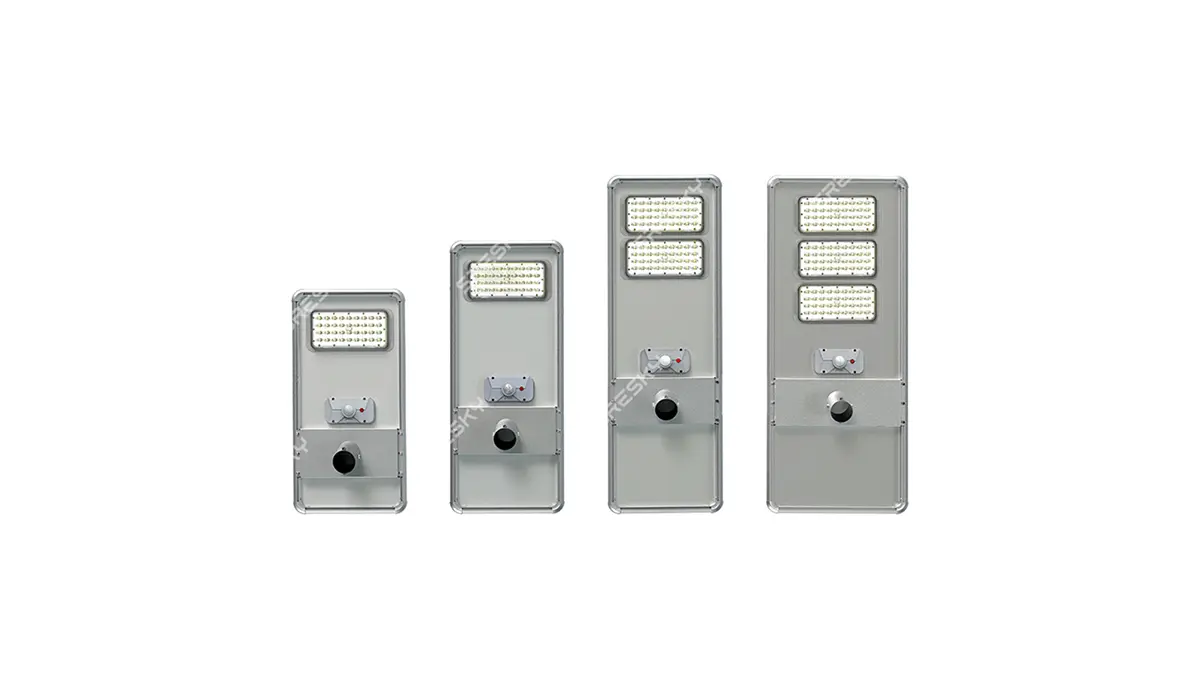

Raptor SSL-204/206/208/210 Solar Street Light

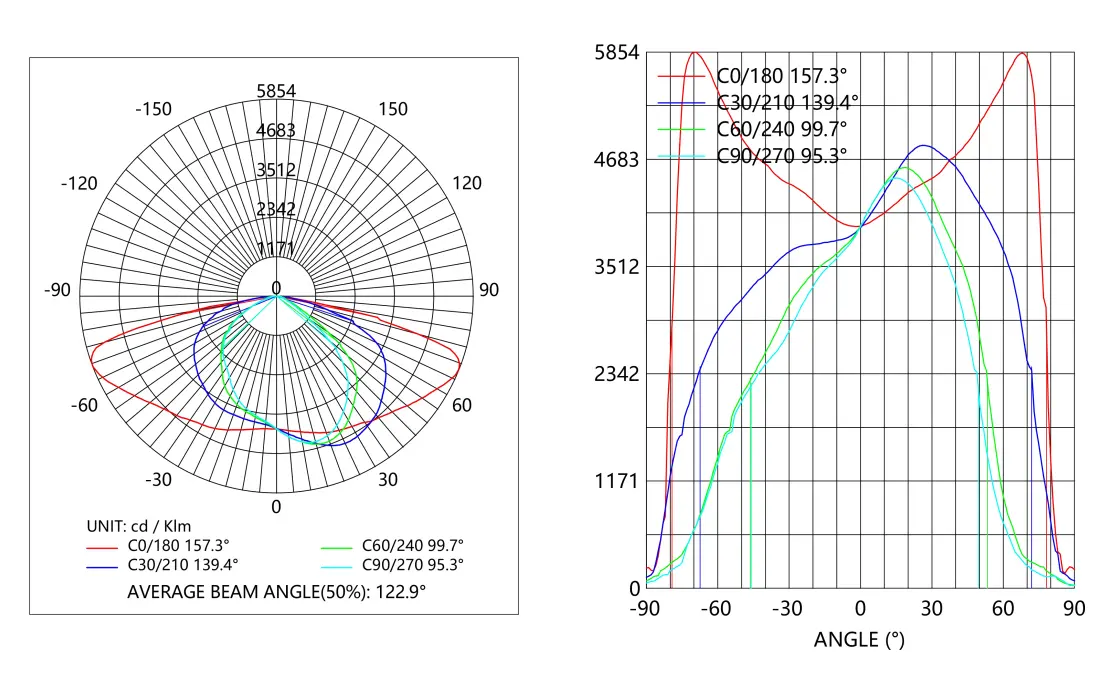

Optical Figure

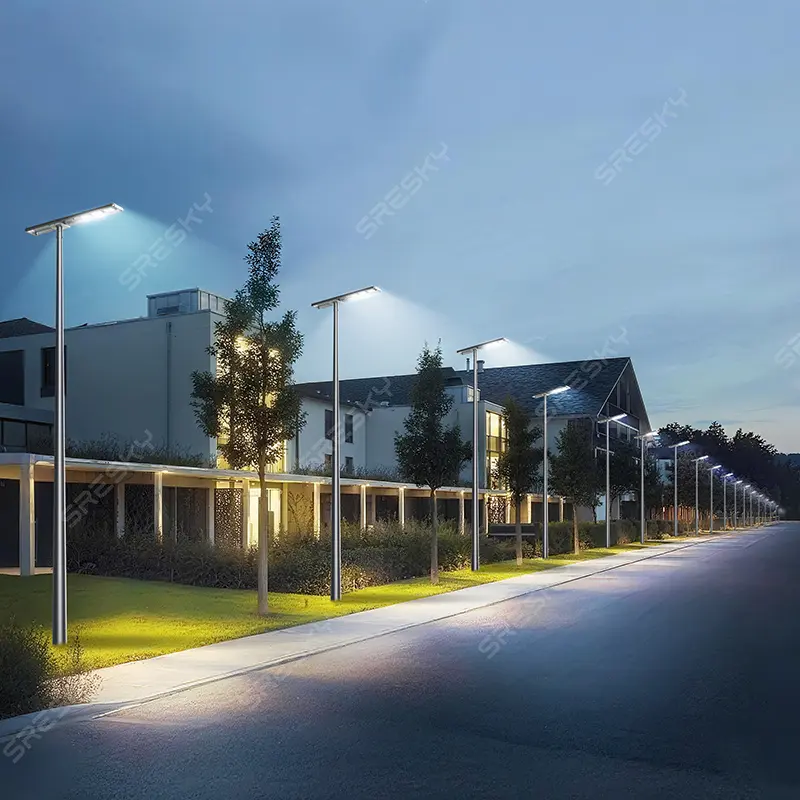

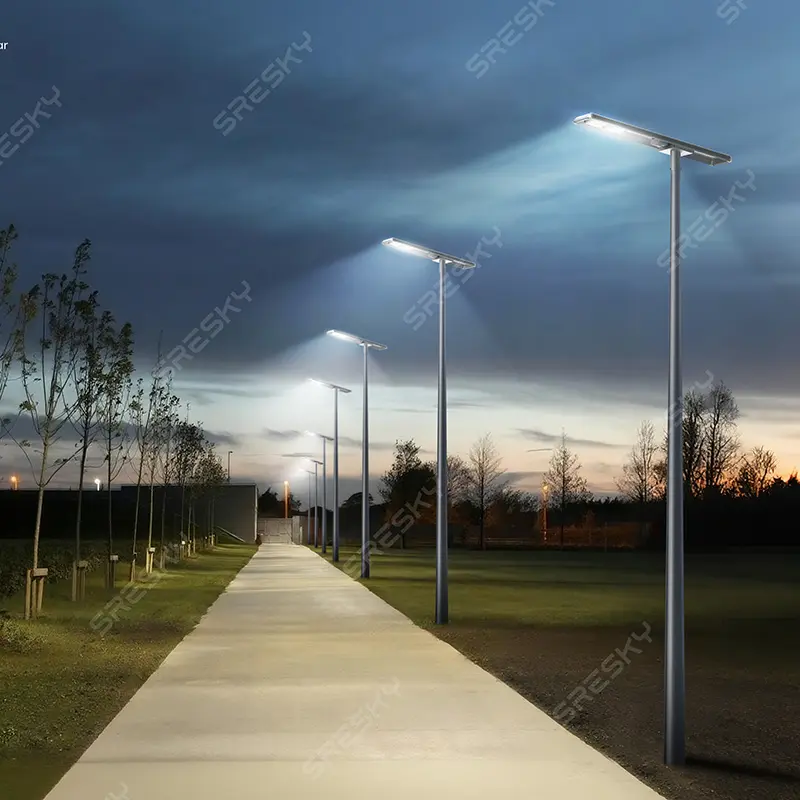

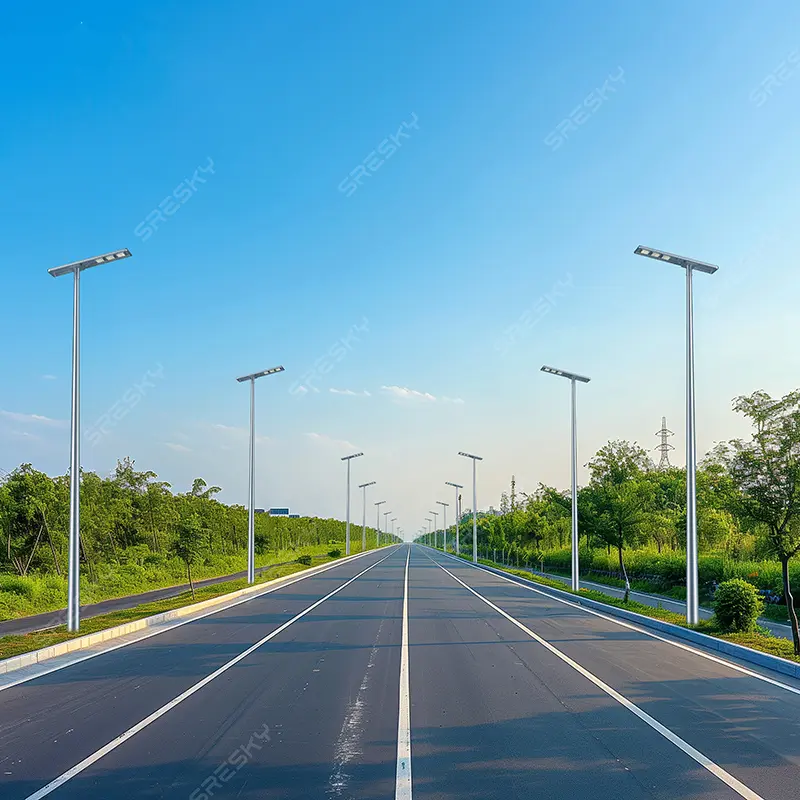

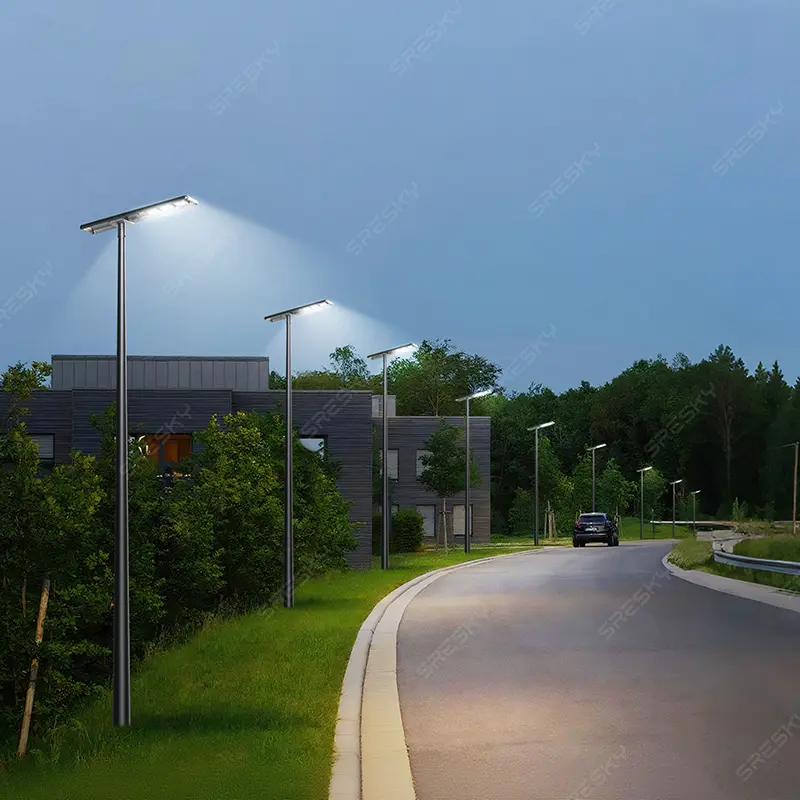

Application Imagery

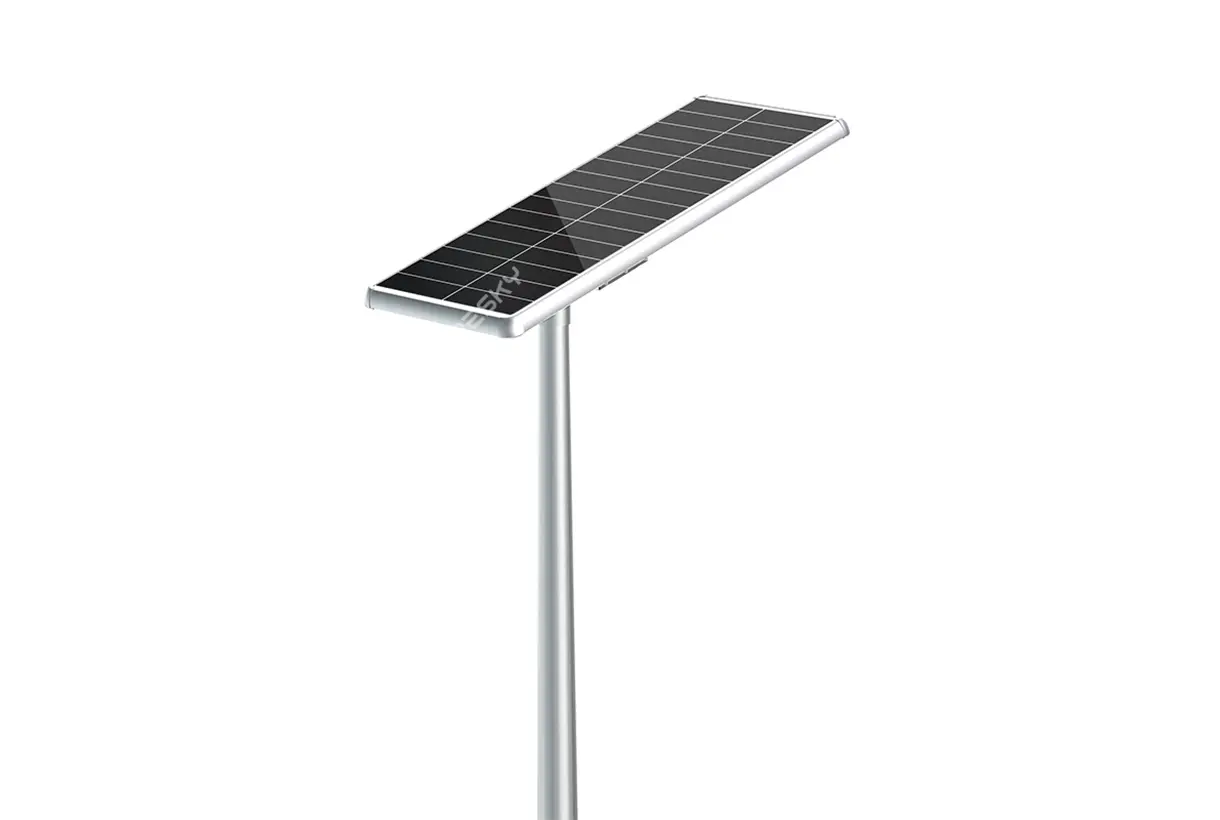

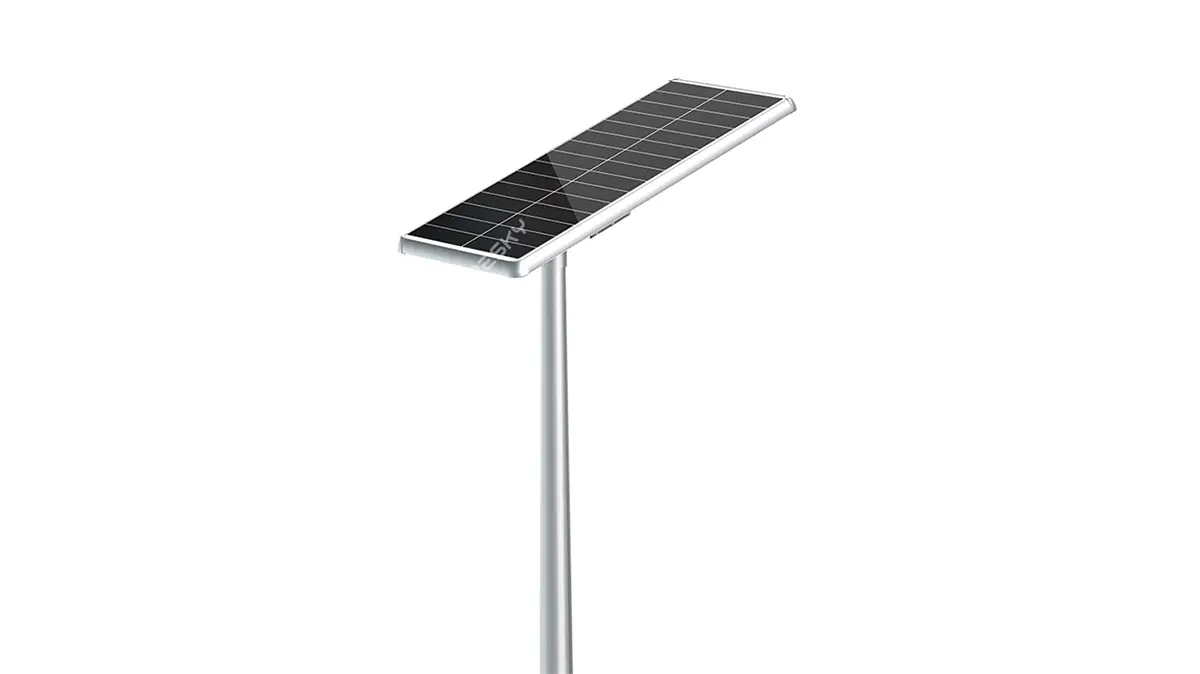

Adjustable Solar Panels
It can solve the the problem of sunlight Angle when lights are installed on both sides of the road.
Sresky Core Technology
The iteration of new energy products constantly
motivates us to make breakthroughs in product development and technology
Product Details
The iteration of new energy products constantly
motivates us to make breakthroughs in product development and technology
High Luminous Efficiency Coverage
230lm/W, 4000–10000lm options, reducing fixture count and lowering project costs.
Smart Energy Savings
Multi-mode and remote control optimize energy consumption, boosting ROI.
All-Weather Stability
ALS2.4 constant brightness + TCS thermal control ensures reliability in rain, fog, and high temperatures, minimizing downtime and complaints.
Quick Maintenance
Modular design and controller enable faster installation and lower labor costs.
Long-Lasting Battery
High-efficiency lithium battery reduces replacement and after-sales service.
Robust Protection
IP65 waterproof + IK08 impact resistance ensures long-term stable operation in harsh environments.
Wide Adaptability
Covers 140–190㎡ at 6–10m installation heights, meeting diverse needs for roads, campuses, and projects.
Rapid ROI
Comprehensive energy and operational cost savings ensure faster return on investment.
Product Information
Installation Method
Other products
Send Your Queries
We'll contact you as soon as we get the message.
Raptor SSL-204/206/208/210 Solar Street Light
Application Imagery
It can solve the the problem of sunlight Angle when lights are installed on both sides of the road.
Product Details
High Luminous Efficiency Coverage:
230lm/W, 4000–10000lm options, reducing fixture count and lowering project costs.
Smart Energy Savings:
Multi-mode and remote control optimize energy consumption, boosting ROI.
All-Weather Stability:
ALS2.4 constant brightness + TCS thermal control ensures reliability in rain, fog, and high temperatures, minimizing downtime and complaints.
Quick Maintenance:
Modular design and controller enable faster installation and lower labor costs.
Long-Lasting Battery:
High-efficiency lithium battery reduces replacement and after-sales service.
Robust Protection:
IP65 waterproof + IK08 impact resistance ensures long-term stable operation in harsh environments.
Wide Adaptability:
Covers 140–190㎡ at 6–10m installation heights, meeting diverse needs for roads, campuses, and projects.
Rapid ROI:
Comprehensive energy and operational cost savings ensure faster return on investment.

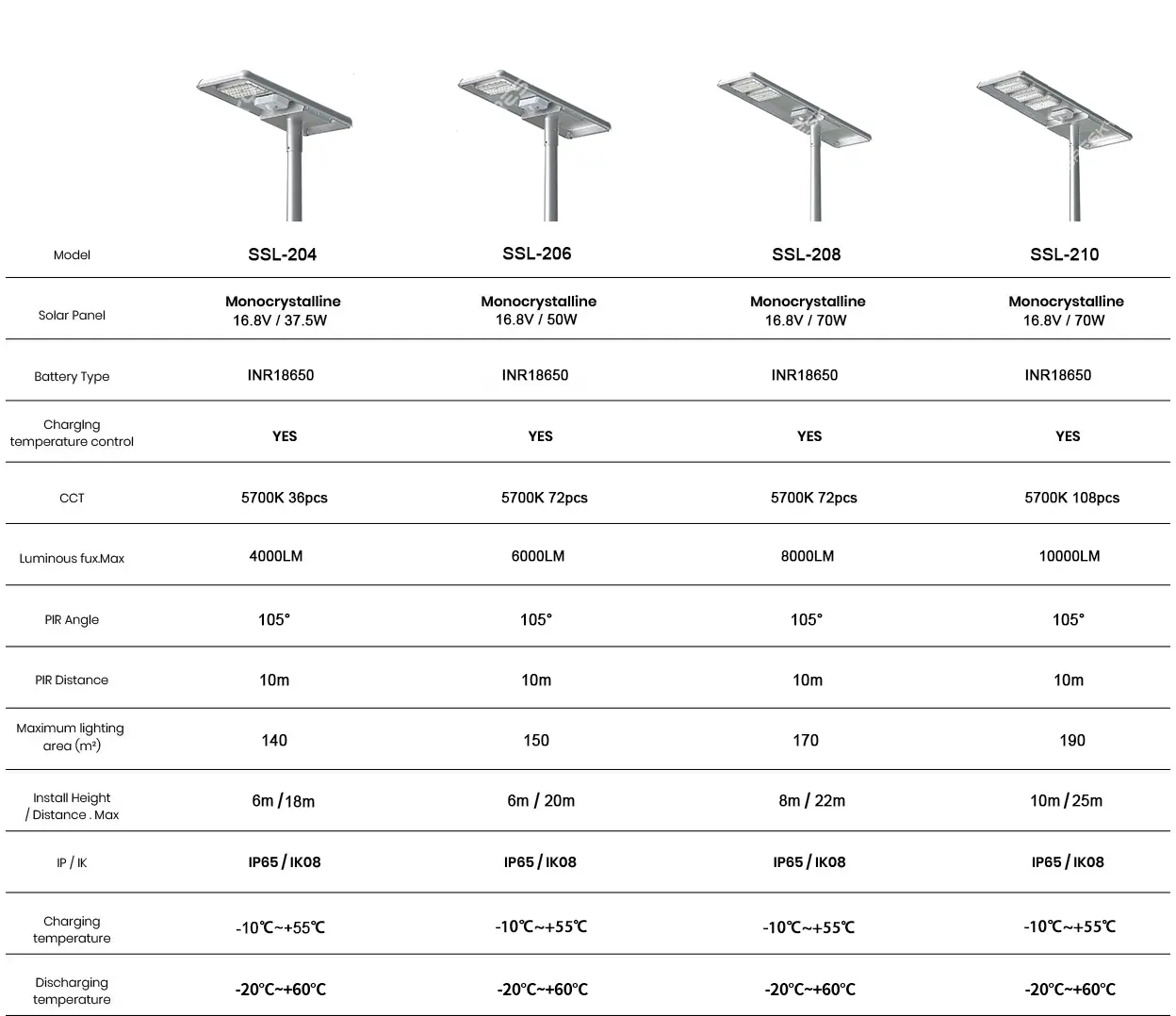

Product Information
| Model | SSL-204 | SSL-206 | SSL-208 | SSL-210 |
|---|---|---|---|---|
| Solar Panel | Monocrystalline silicon 37.5w | Monocrystalline silicon 50w | Monocrystalline silicon 75w | Monocrystalline silicon 100w |
| Battery Type | 3.7V 115.44WH | 3.7V 153.92WH | 3.7V 192.4WH | 3.7V 230.88WH |
| Charging Time | 4H | 3H | 2.7H | 2.3H |
| CCT | 5700k 36pcs | 5700k 72pcs | 5700k 72pcs | 5700k 108pcs |
| Luminous flux.Max | 4000lm | 6000lm | 8000lm | 10000lm |
| PIR Angle / PIR Distance | 105° / 10m | 105° / 10m | 105° / 10m | 105° / 10m |
| Maximum lighting area | 140m² | 150m² | 170m² | 190m² |
| Install height / Distance Max | 6m / 18m | 6m / 20m | 8m / 22m | 10m / 25m |
| IP / IK | IP65 / IK08 | IP65 / IK08 | IP65 / IK08 | IP65 / IK08 |
| Charging temperature | -10~+55 ℃ | -10~+55 ℃ | -10~+55 ℃ | -10~+55 ℃ |
| Discharging temperature | -20~+60 ℃ | -20~+60 ℃ | -20~+60 ℃ | -20~+60 ℃ |
Installation Method
