1. Project Background and Needs Analysis
Project Background

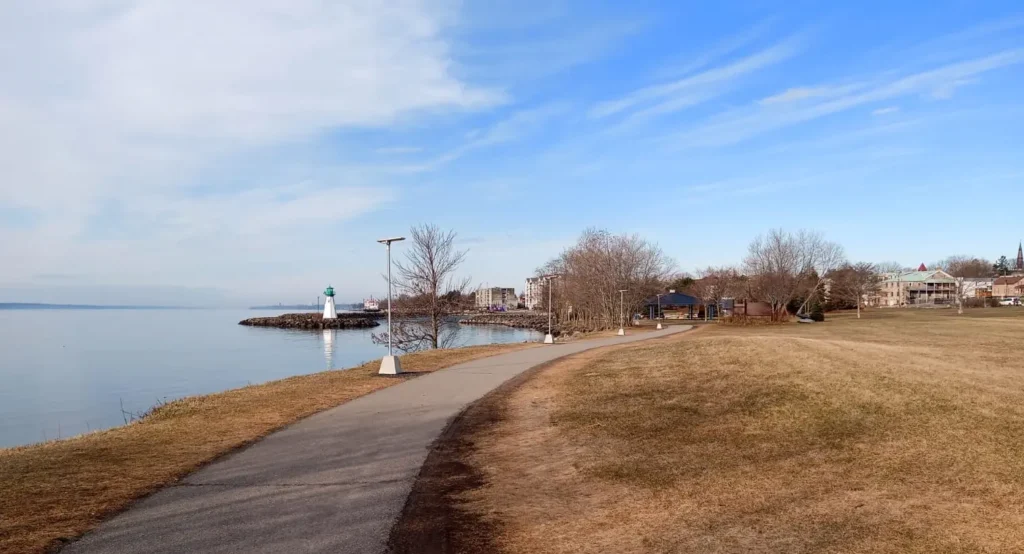

Canada is renowned for its magnificent lakes and forests. This project site is a lakeside park in Ontario featuring a winding walking trail stretching several kilometers. The trail surrounds crystal-clear waters and dense forest habitats, making it a popular destination for walking, jogging, birdwatching, and family activities.
However, the absence of reliable nighttime lighting plunges the trail into darkness after sunset. This becomes especially challenging during Canada’s long winter months (November to March), when daylight lasts only 6–8 hours, reducing the effective use of the public space. Traditional grid-connected lighting, requiring cable trenching, is costly—often reaching tens of thousands of dollars per kilometer—and poses risks of soil erosion and ecological disruption along the lakeshore.
In alignment with the Canadian federal government’s Green Infrastructure Investment Plan and local environmental regulations, the municipal department initiated a lighting upgrade. The SRESKY Atlas Series was selected for its reliability in similar park environments and its track record of winning more than 3,500 tenders worldwide.
Core Requirements and Challenge Analysis
The trail’s sensitive lakeside environment required a lighting solution that balances ecological protection, functionality, and aesthetic value. Field studies and community feedback identified the following key requirements:
Ecological Conservation Priority:
Located adjacent to the lake, any large-scale excavation or cable routing could disturb vegetation, harm aquatic ecosystems, or trigger soil erosion. The solution needed to achieve “zero excavation” and comply with the Canadian Environmental Assessment Act (CEAA).
All-Weather, Cross-Season Reliability:
Ontario’s climate features humid summers (average 100mm/month precipitation) and harsh winters with temperatures dropping below -20°C, significant snowfall, and prolonged overcast conditions (sometimes <4 hours of sunlight daily). Lighting equipment required long endurance (>10 days of lighting during rainy or snowy periods) and wide temperature adaptability to prevent battery failure.
Harmonious Integration with the Natural Landscape:
As a scenic trail, lighting fixtures needed a modern, clean design that blends into the lakeside environment without visual pollution, offering soft illumination that enhances the nighttime ambiance.
Demand-Driven Intelligence and Energy Efficiency:
Foot traffic fluctuates—high volumes during summer evenings but sparse late at night and in winter. The system needed smart sensors for adaptive lighting, delivering over 30% energy savings and supporting remote monitoring.
Ensuring Public Safety and Comfort:
Lighting required uniform coverage (Type 2 light distribution), a minimum brightness of 2000LM, and a color temperature of 5700K (Ra>70) to simulate natural light, reduce glare, and eliminate nighttime hazards.
These complexities highlight the challenges of deploying solar streetlights in high-latitude, environmentally sensitive zones. The SRESKY Atlas Series meets these needs with its modular design and advanced technologies.
2. Technical Solution Design
After evaluating multiple suppliers through weather-resistance tests and lifecycle cost analysis, the project team selected the SRESKY Atlas Series integrated solar streetlights. Its innovative design meets the comprehensive needs of lakeside walkways.

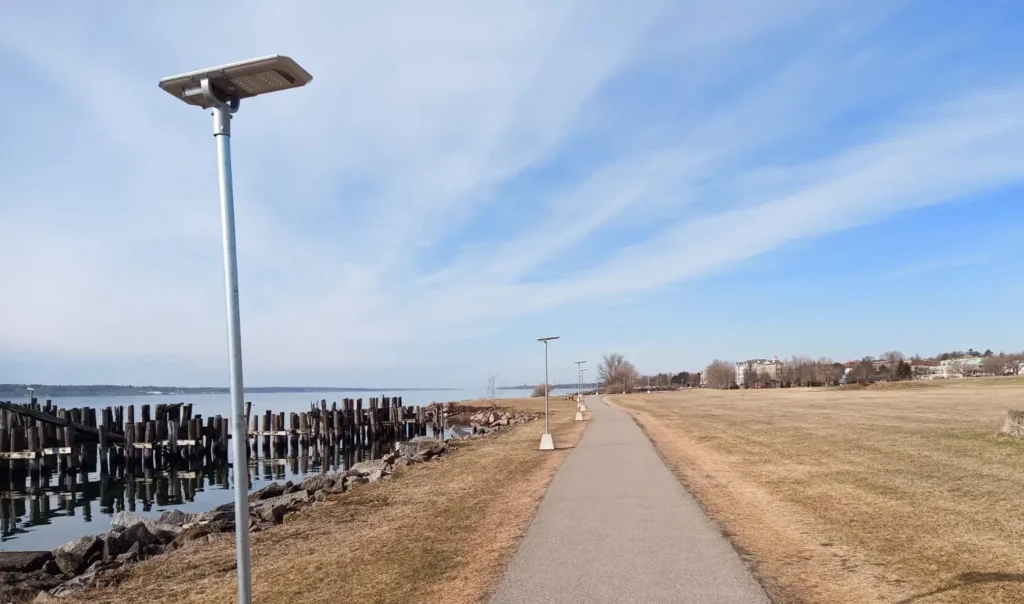

Integrated Solar Design: Green, Non-Invasive Installation
The Atlas Series integrates monocrystalline solar panels (>23% efficiency), high-quality lithium batteries (2000 cycles), OSRAM LED modules (230 lm/W), and smart controllers into one unit. This eliminates the need for grid connection or cable trenching, thus protecting lakeshore ecosystems. Installation requires only small foundation cages secured with C20 concrete, minimizing environmental impact.
Core Technologies Designed for Year-Round Climate Challenges
ALS2.3 (Adaptive Lighting System):
This patented system monitors battery levels and weather patterns to automatically optimize power output. Even during 10+ consecutive days of rain, snow, or cloudy weather, lighting performance is maintained—achieving 100% annual uptime. Compared to non-ALS systems, it maintains a flatter brightness decay curve, ideal for Canada’s dim winter days.
TCS (Temperature Control System):
The BMS-based system accelerates charging by 30% and ensures battery charging at 0°C–45°C and discharging at -20°C–+60°C. This prevents low-temperature capacity loss and extends lifespan far beyond typical LiFePO4 batteries in cold climates, ensuring stable winter operation.
PIR Smart Sensing: Optimal Energy Efficiency & Safety
A high-sensitivity PIR infrared sensor (120° angle, 8m range) supports multiple modes. The project uses M1 mode:
– 30% soft illumination when unoccupied
– Instant 100% brightness upon detecting pedestrians or pets
Remote control via APP/PC enables real-time monitoring of battery/solar status and allows seasonal timer and CCT adjustments.
High Protection Rating & Aesthetic Integration
The lamp body uses aluminum alloy and PC materials with dual anti-corrosion brackets, achieving IP65 waterproofing and IK08 impact resistance—ideal for humid lakeside, snow, and salt spray environments. Its streamlined design blends naturally with the landscape. The modular structure allows direct component replacement on poles, significantly reducing maintenance costs.
3. Project Outcomes and Impact
Public Space Value Enhanced

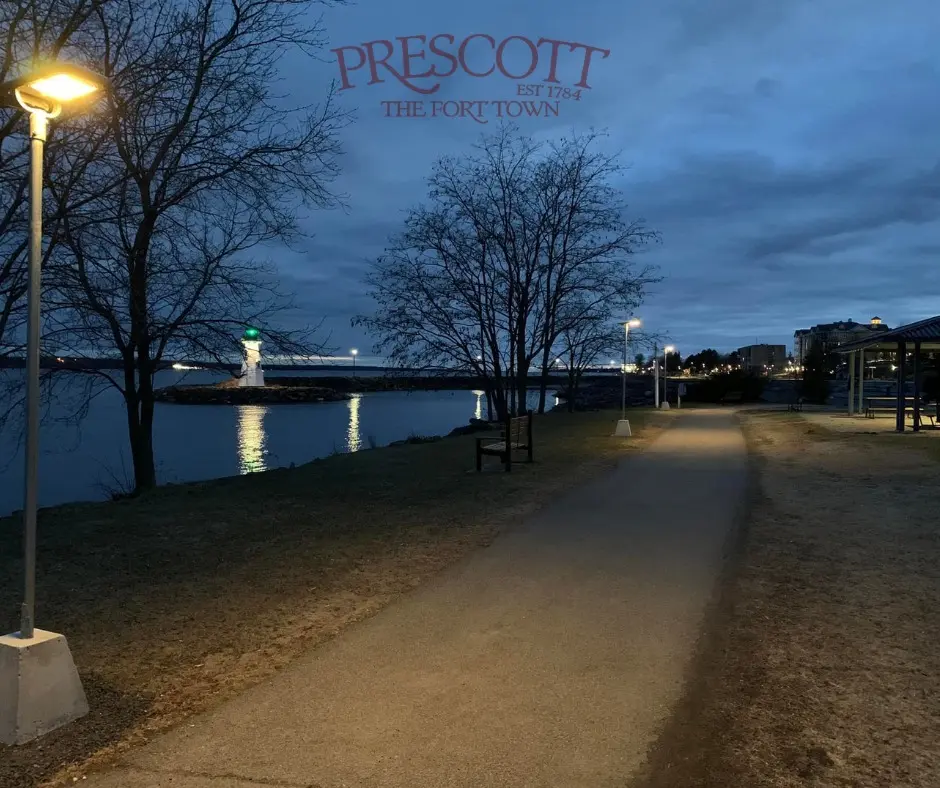

Nighttime illumination extended trail usage by 50%, increased summer visitor volume by 30%, and attracted more winter night runners, revitalizing the park.
All-Weather Safety Improvement

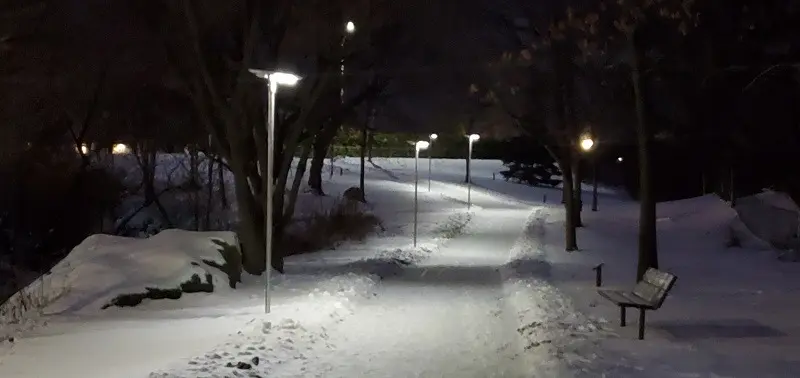

With 100% lighting uptime, nighttime accidents decreased by 20%. Soft, stable illumination ensured safe passage during snowy nights and quiet hours.
Improved Community Well-Being
Community surveys reported a 15% rise in resident satisfaction. The softly lit trail has become a new local landmark, adding a romantic atmosphere at night.
Conclusion
The Canadian Lakeside Trail Solar Lighting Project demonstrates how the strategic deployment of the SRESKY Atlas Series can transform a daytime-only recreational space into a vibrant, safe, and sustainable all-weather destination. It sets a benchmark for ecological conservation, community safety, and green development—serving as a blueprint for future lakeside and nature-friendly lighting initiatives
